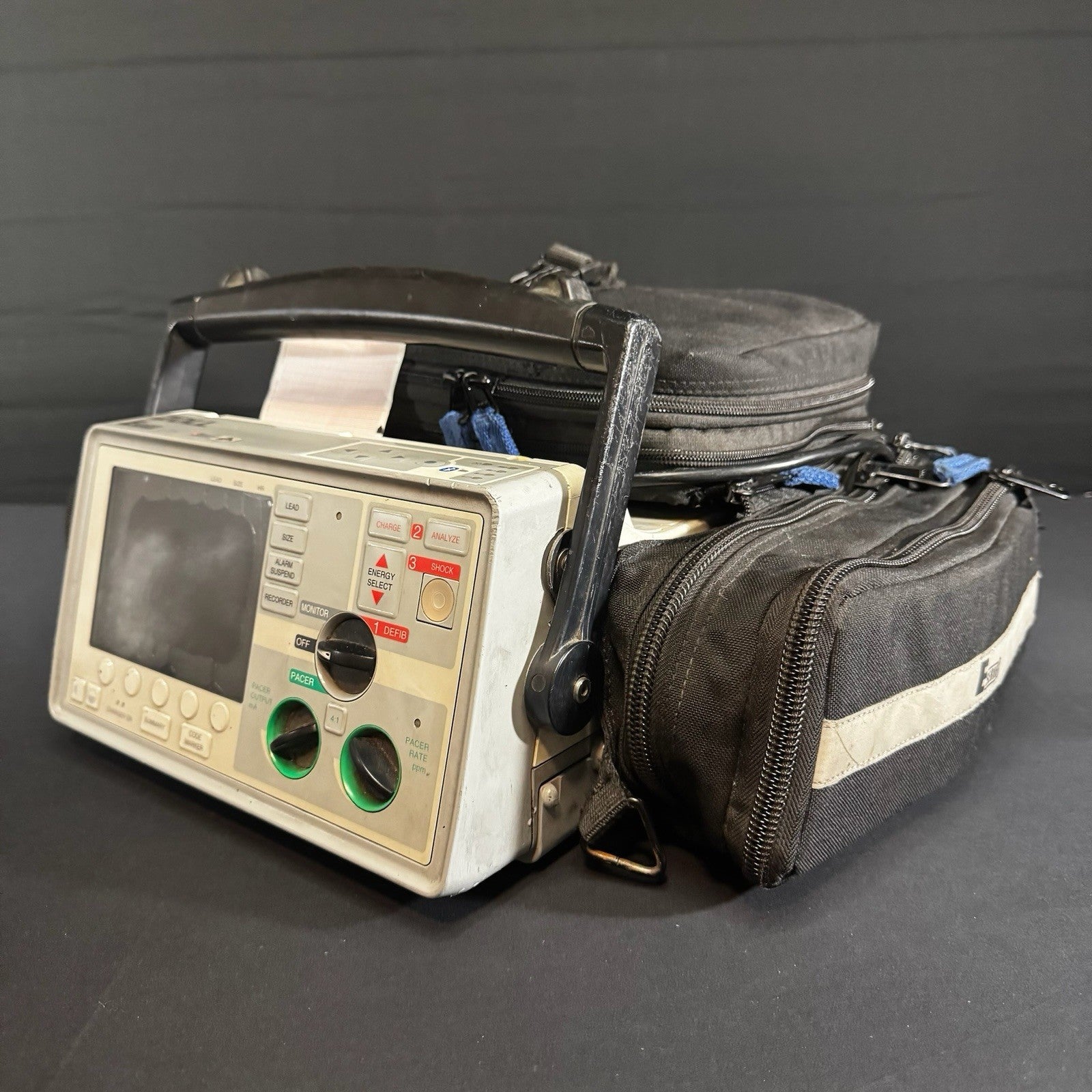

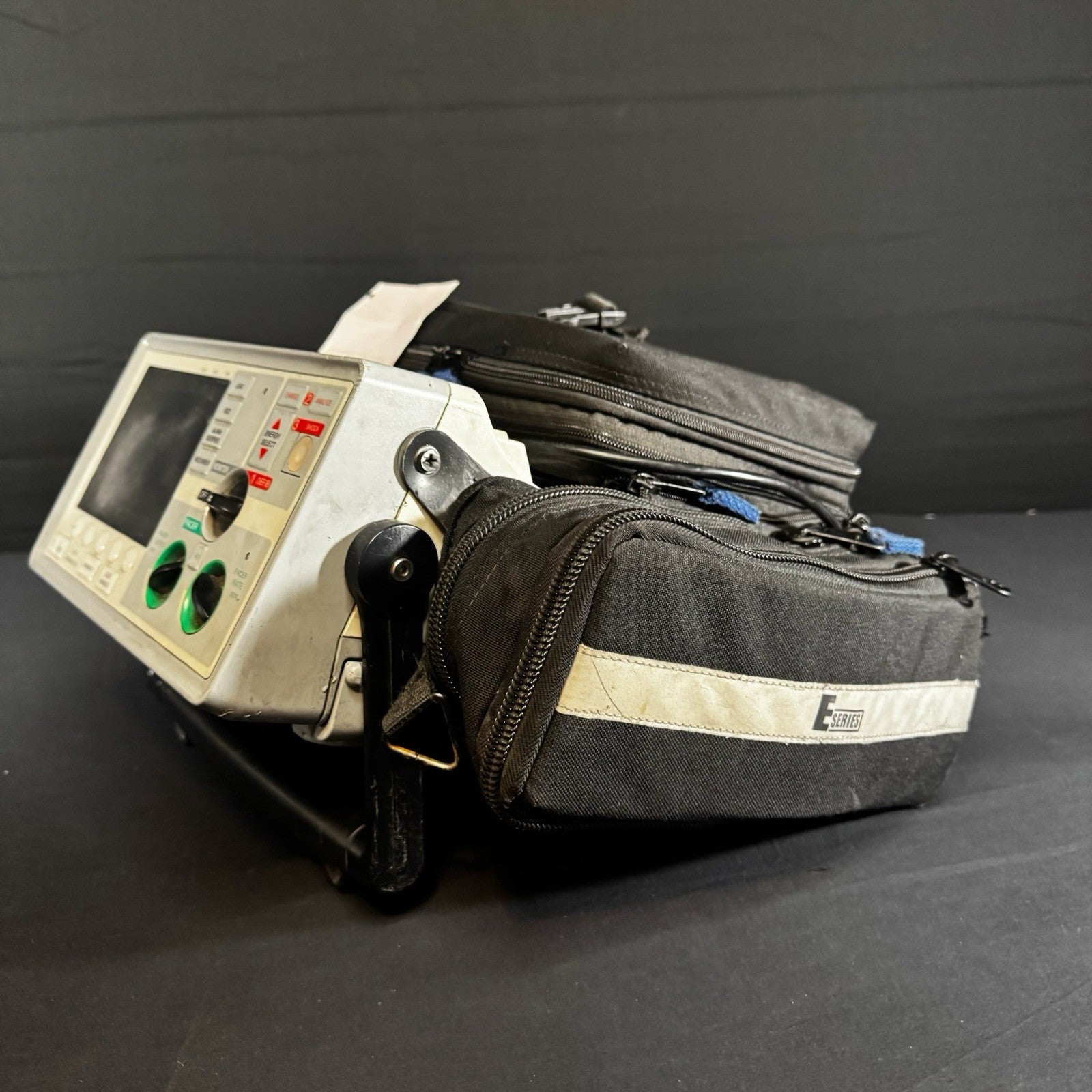

ZOLL E-SERIES 12 Lead Defibrillator Monitor w/ Travel Case and Accessories/cable

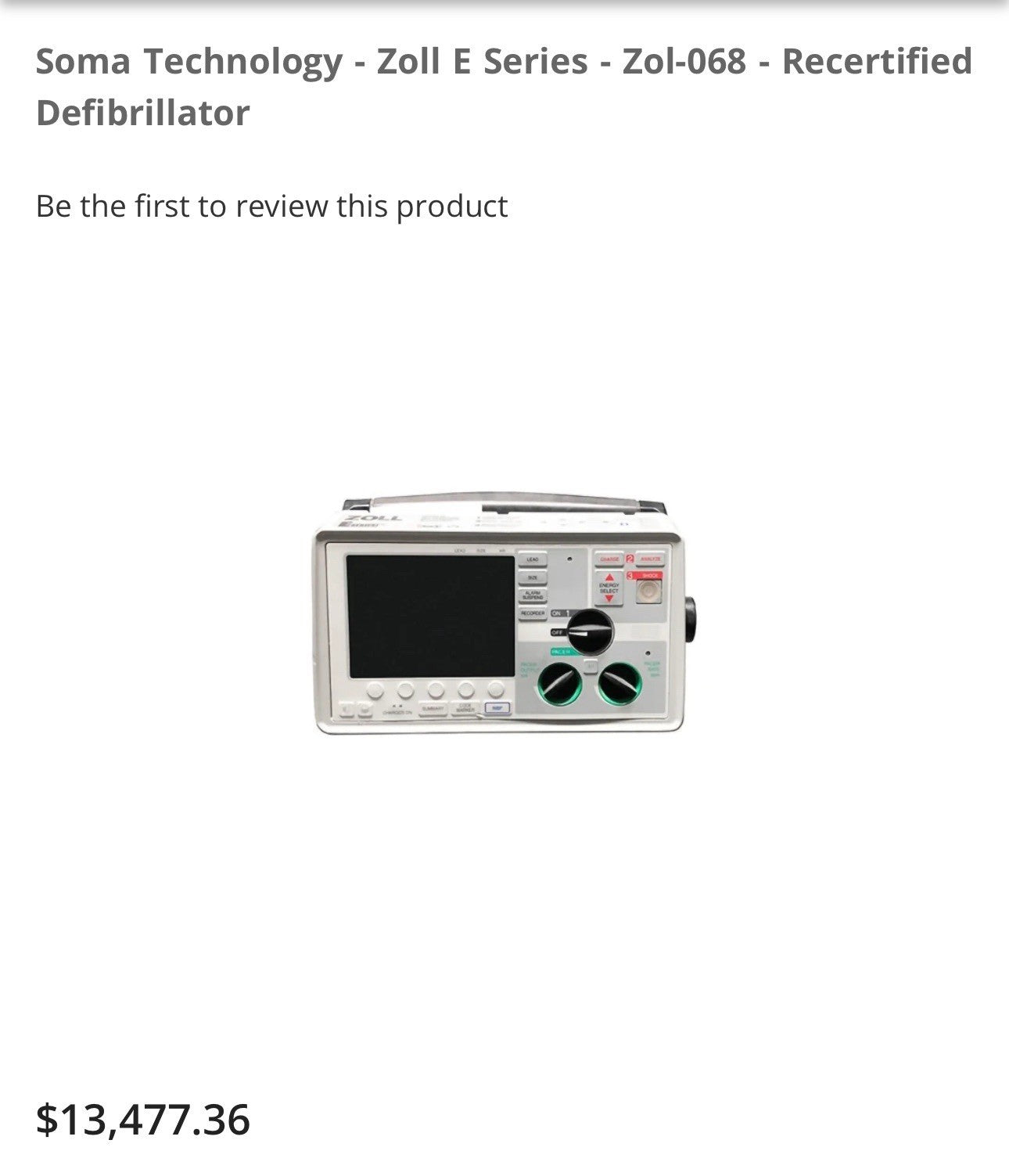

MSRP: $13,000

ZOLL E-Series Defibrillator Monitor

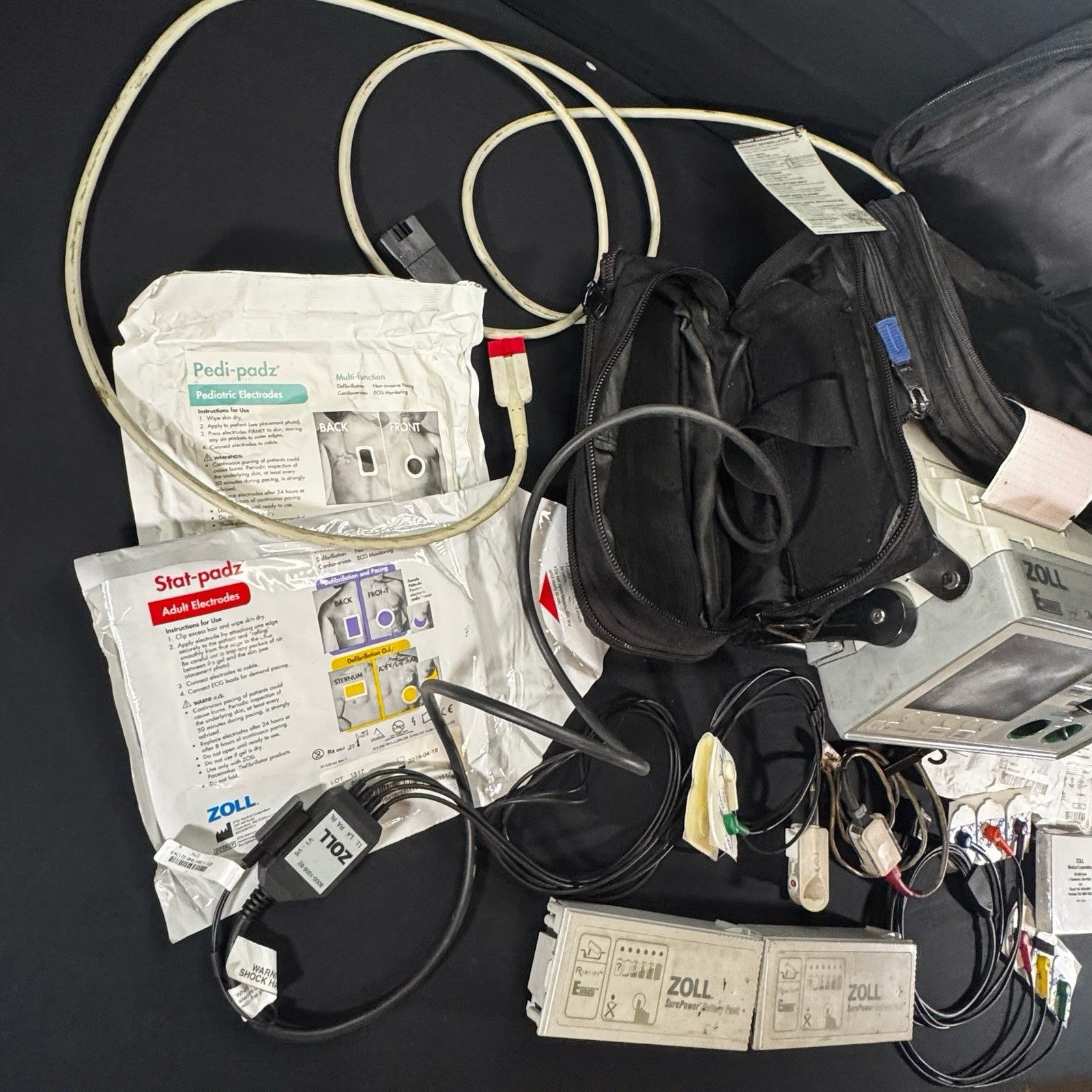

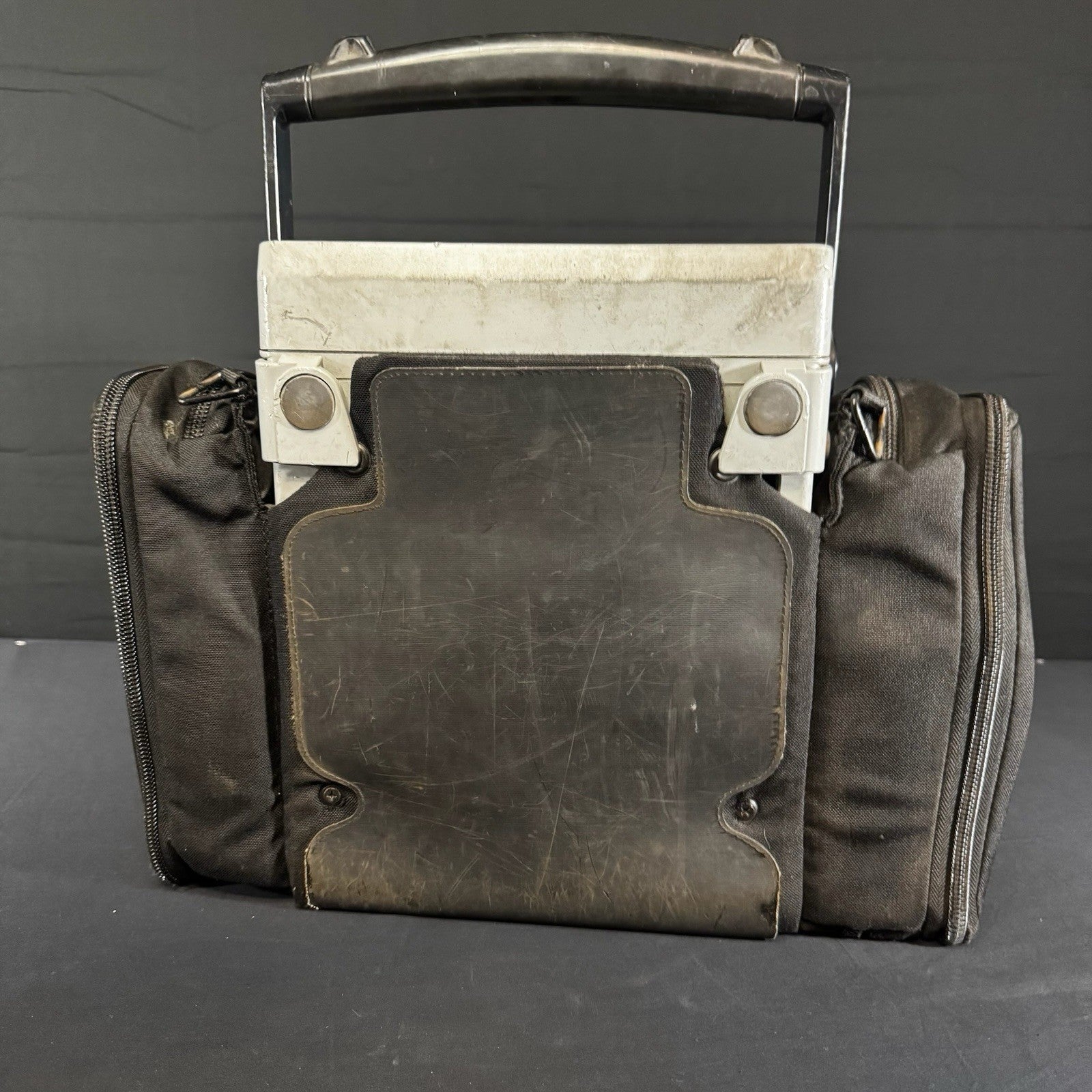

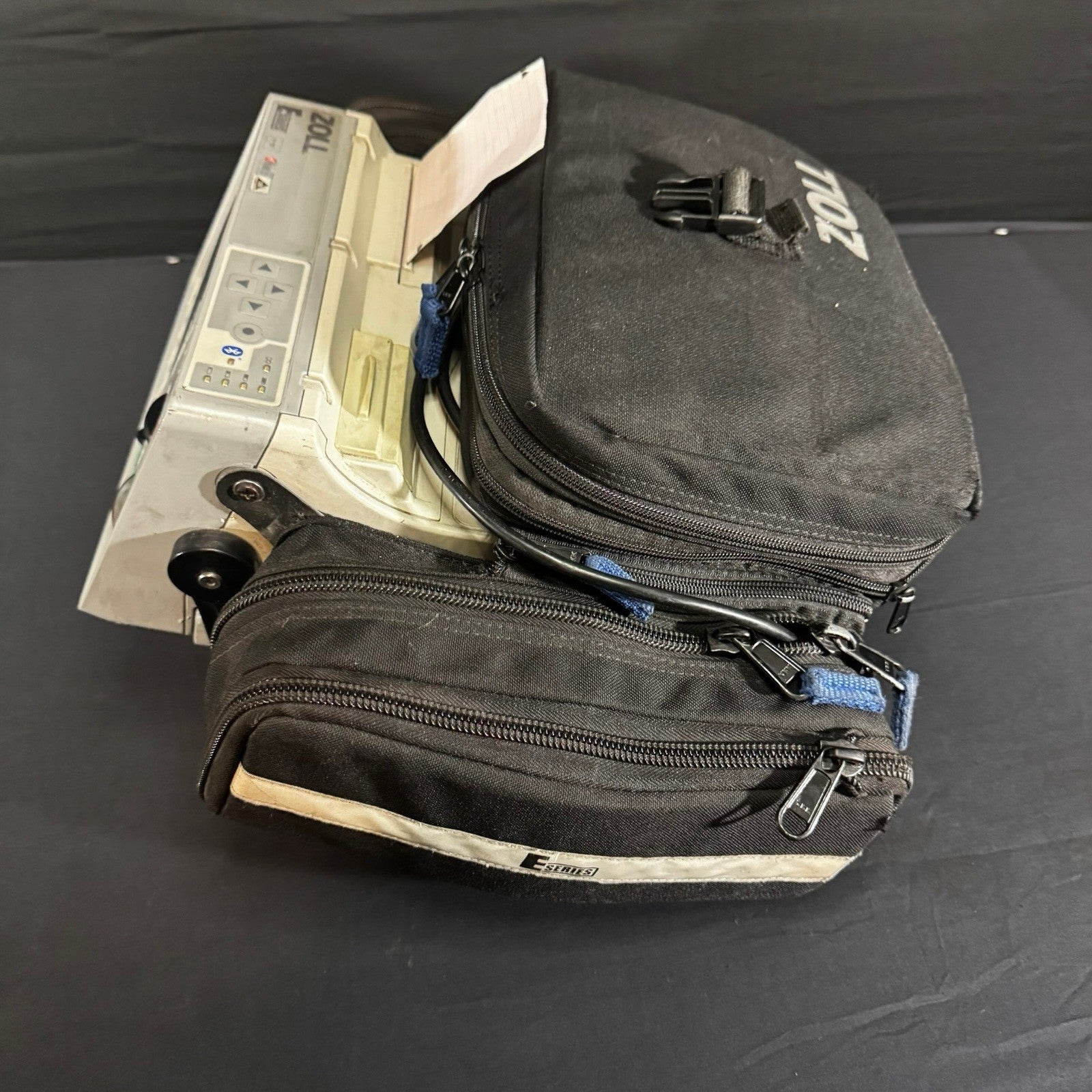

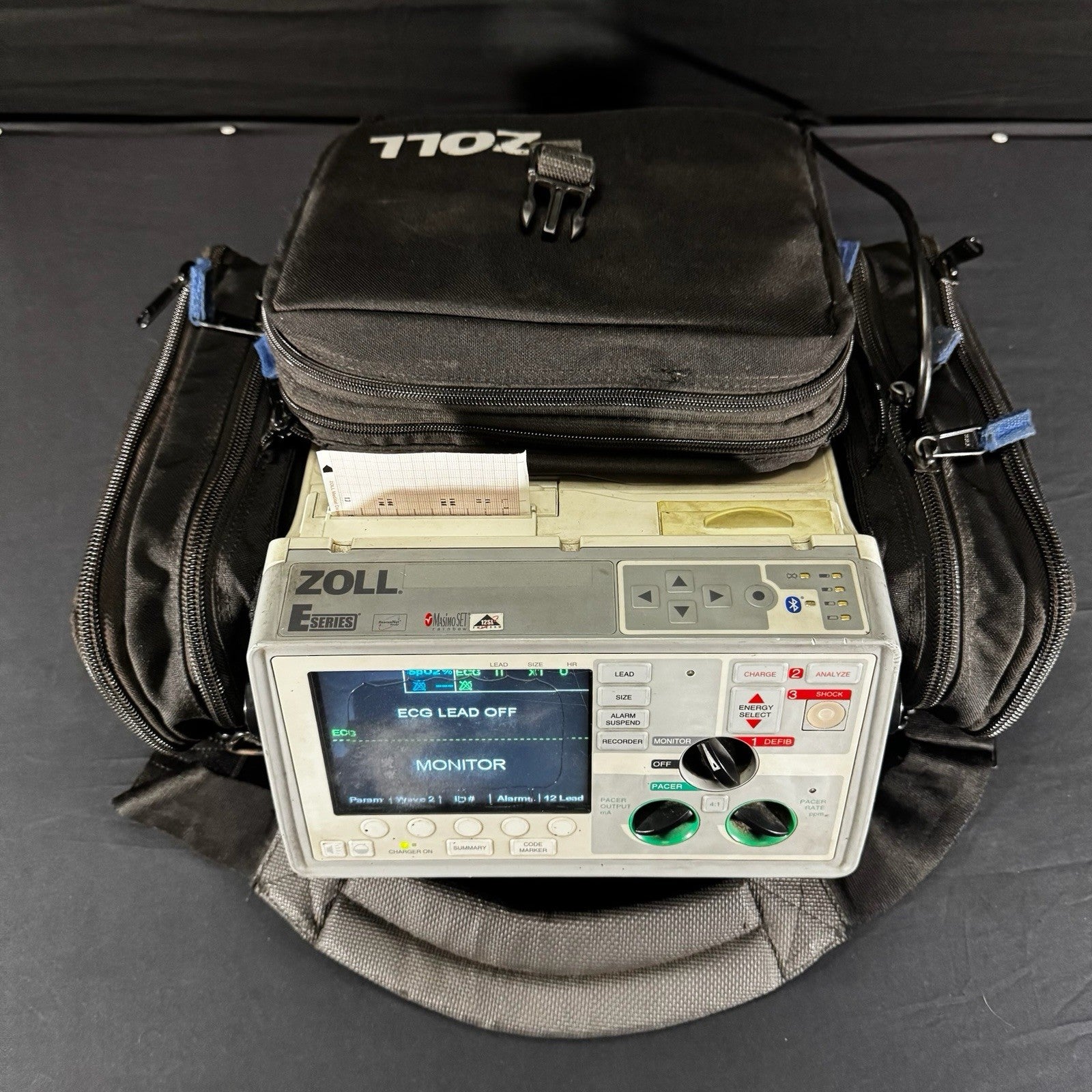

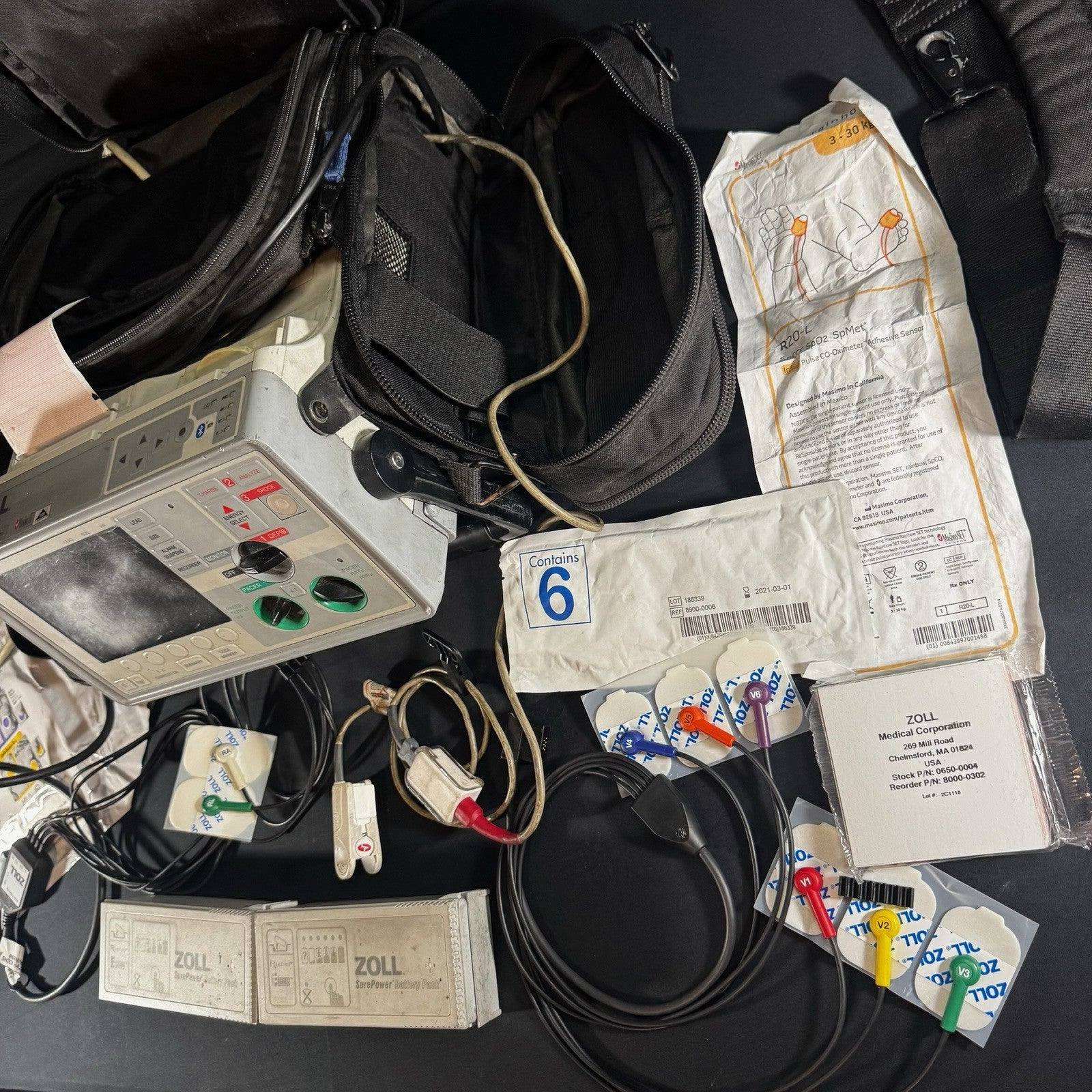

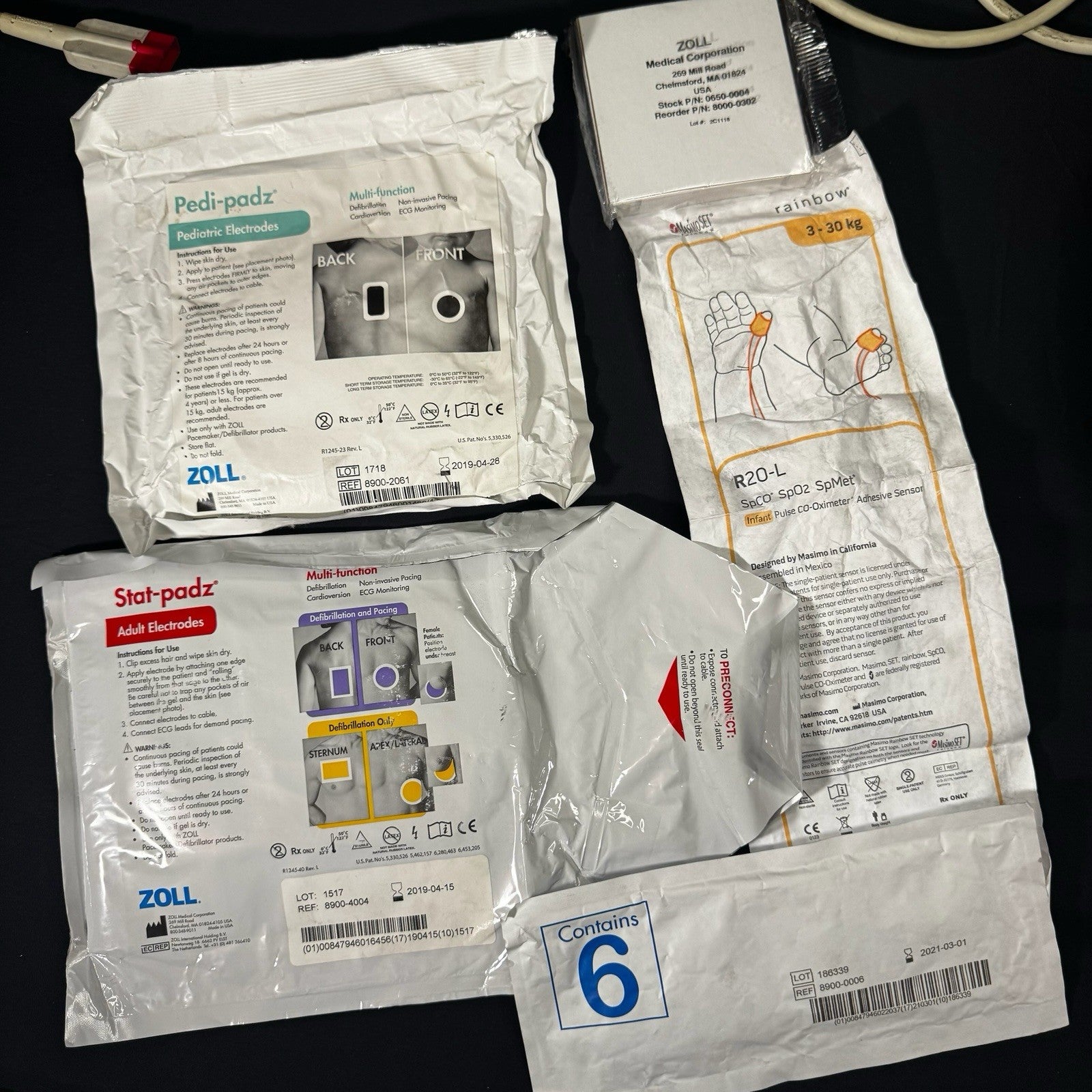

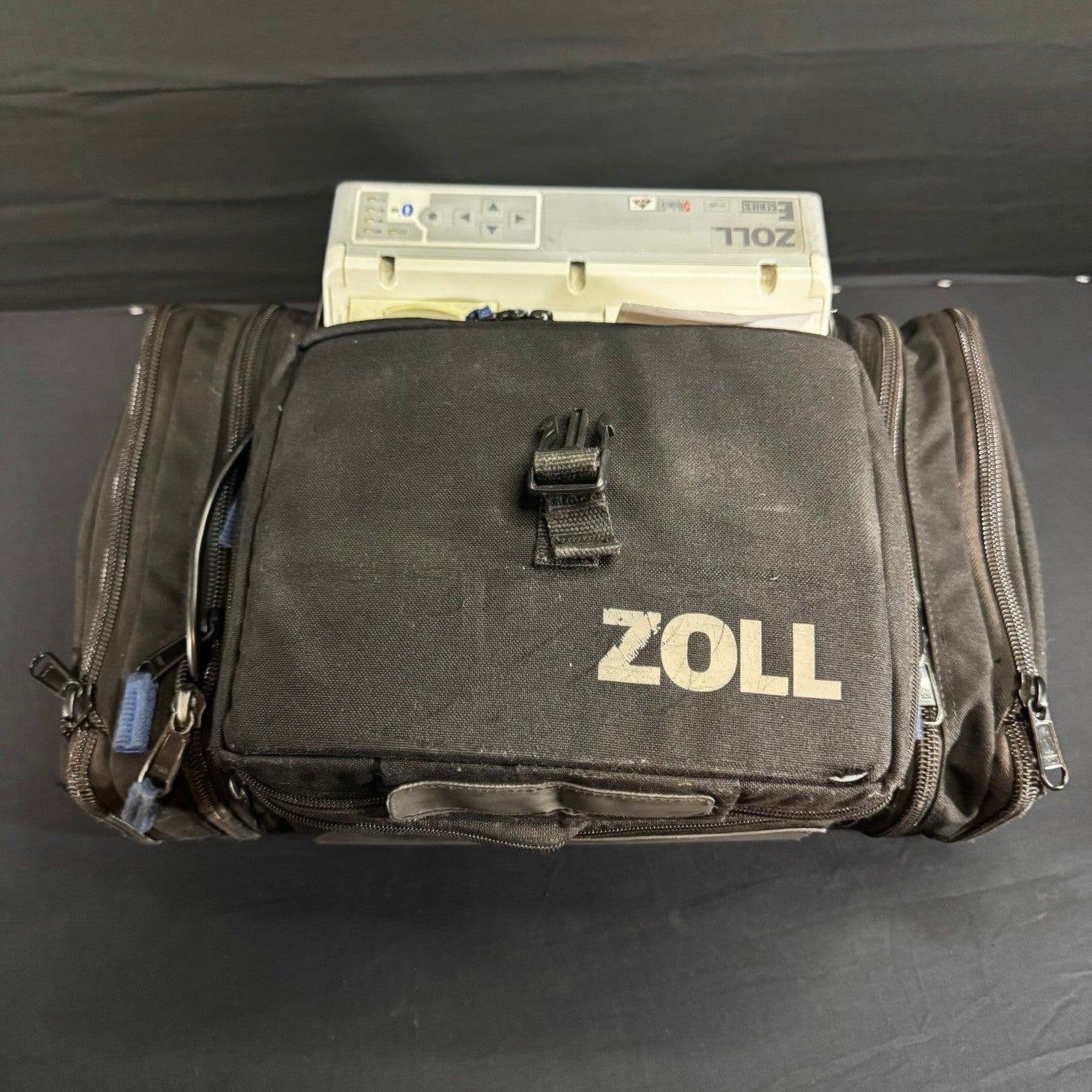

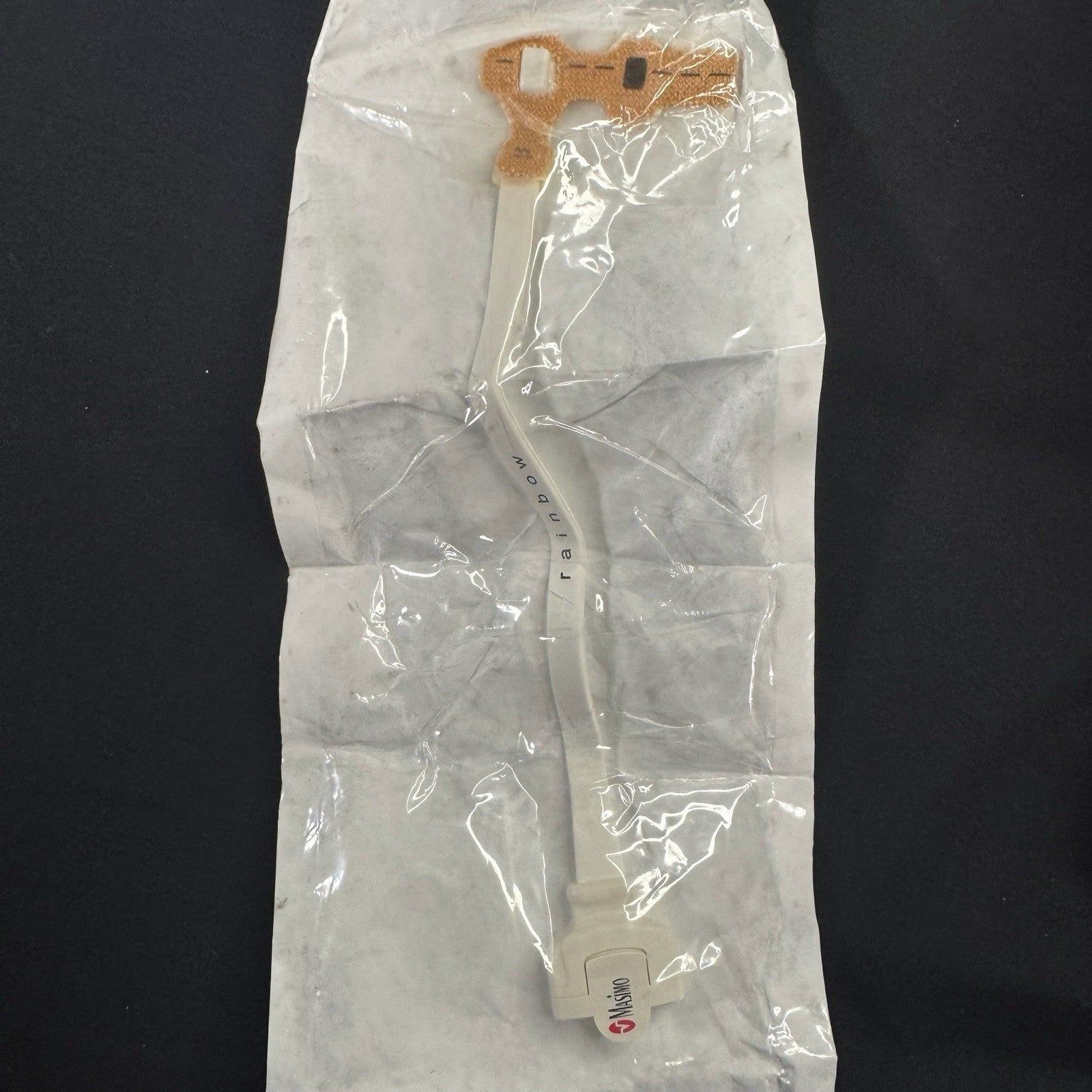

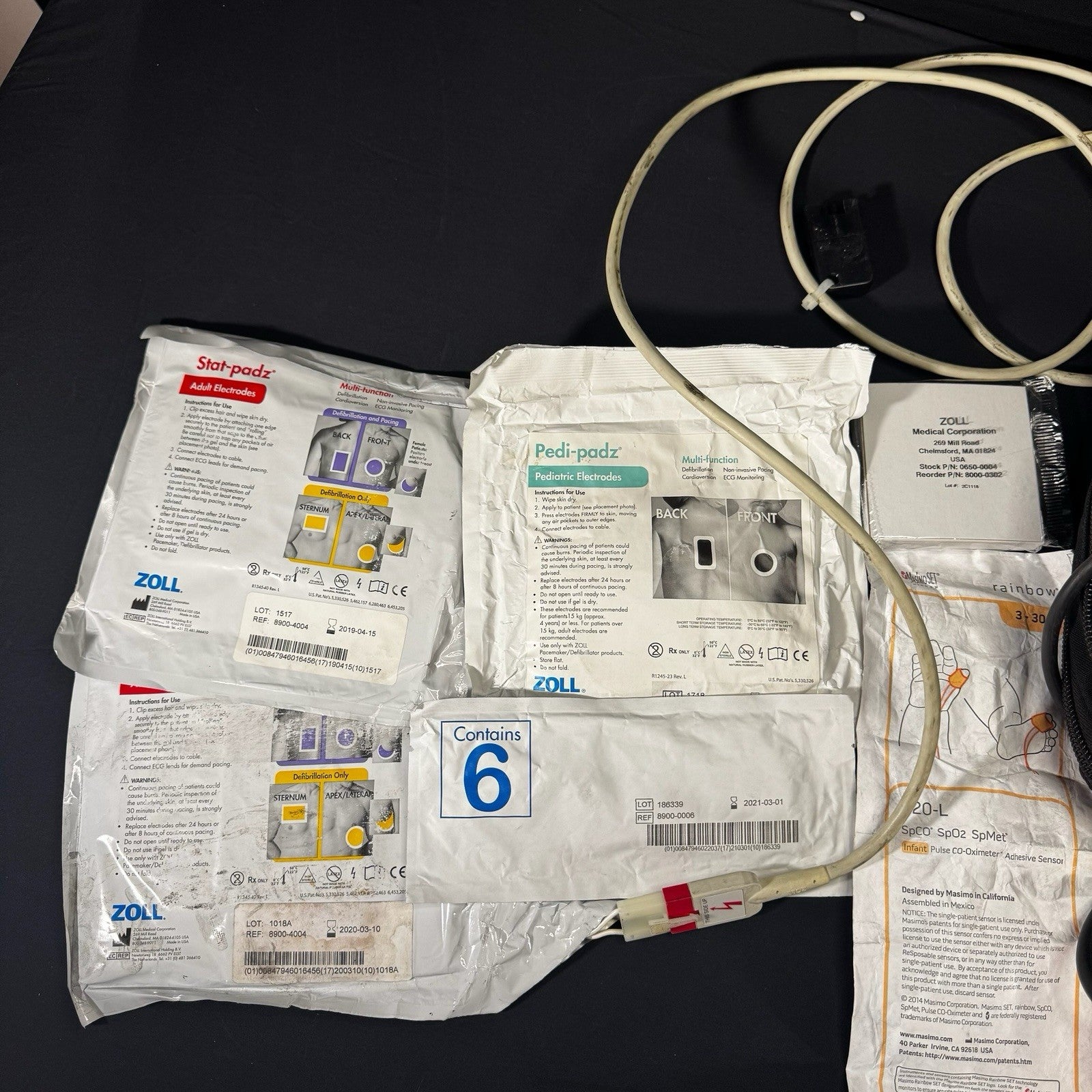

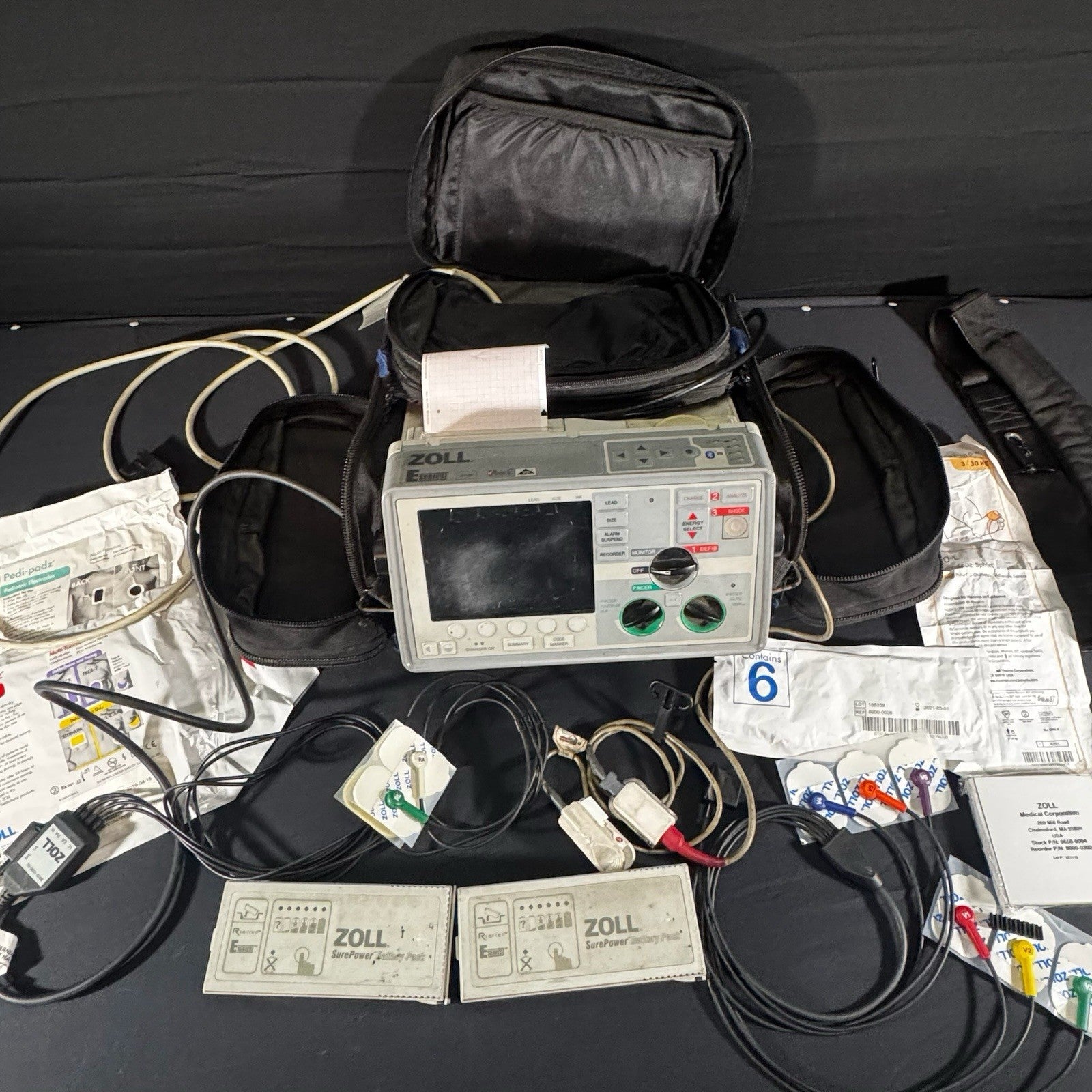

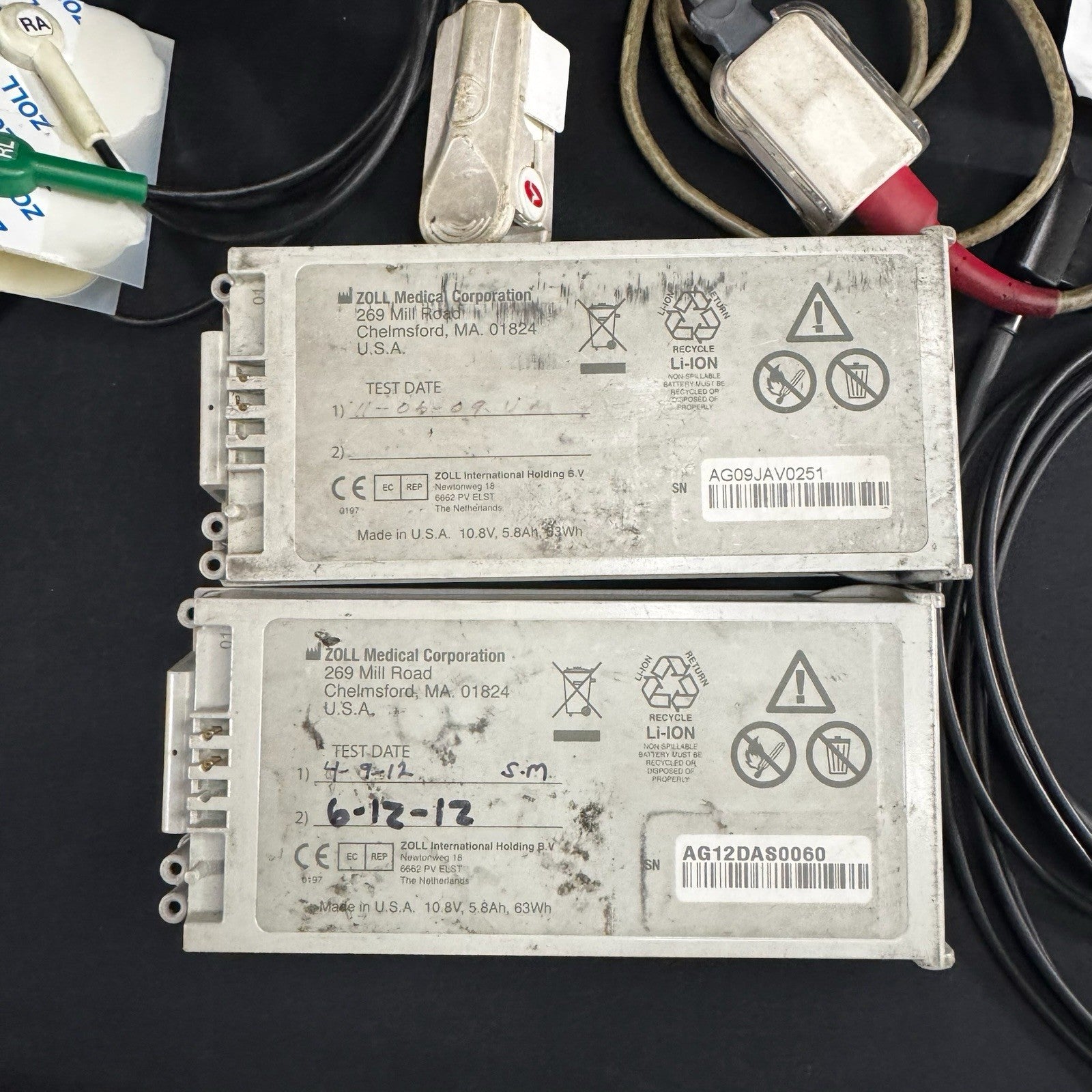

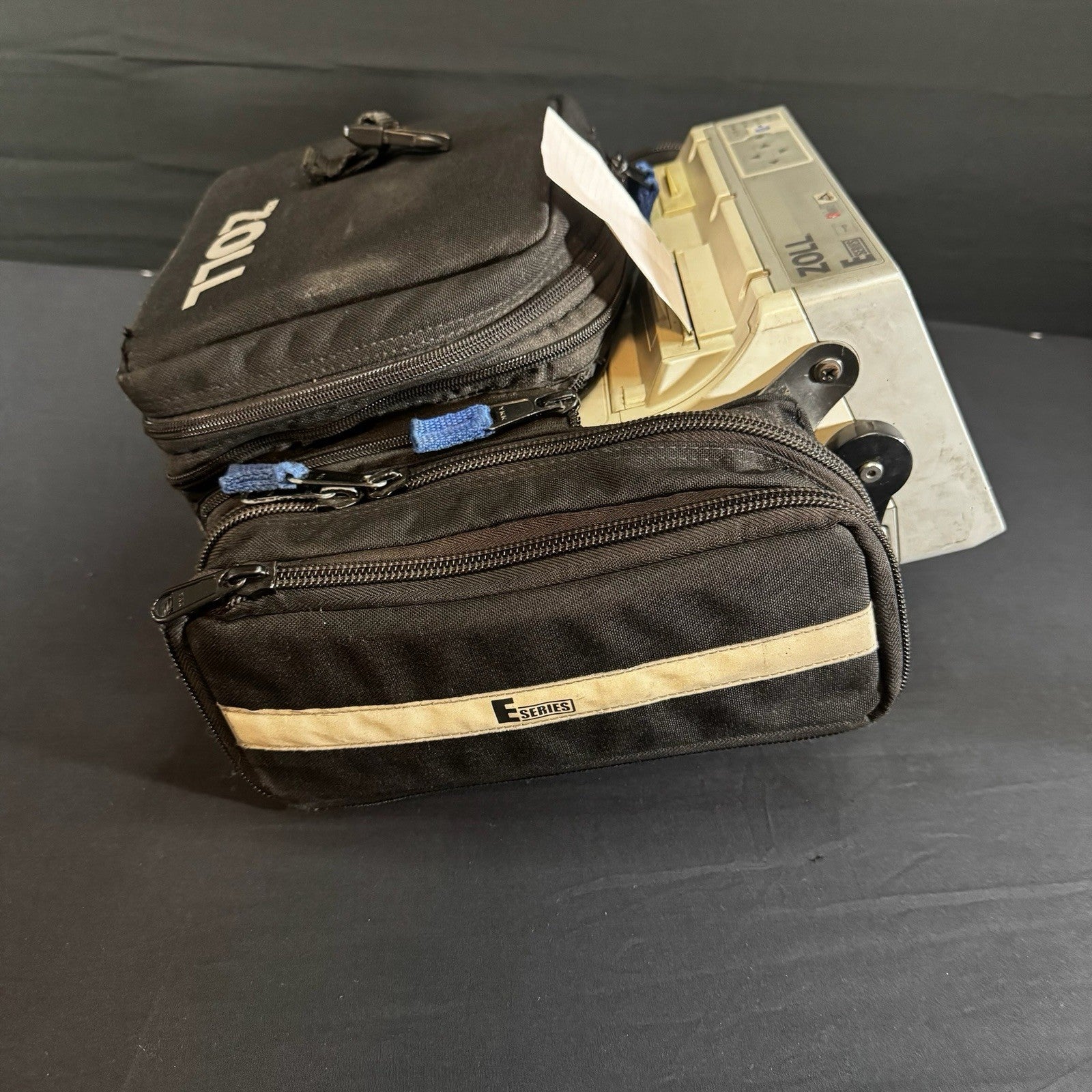

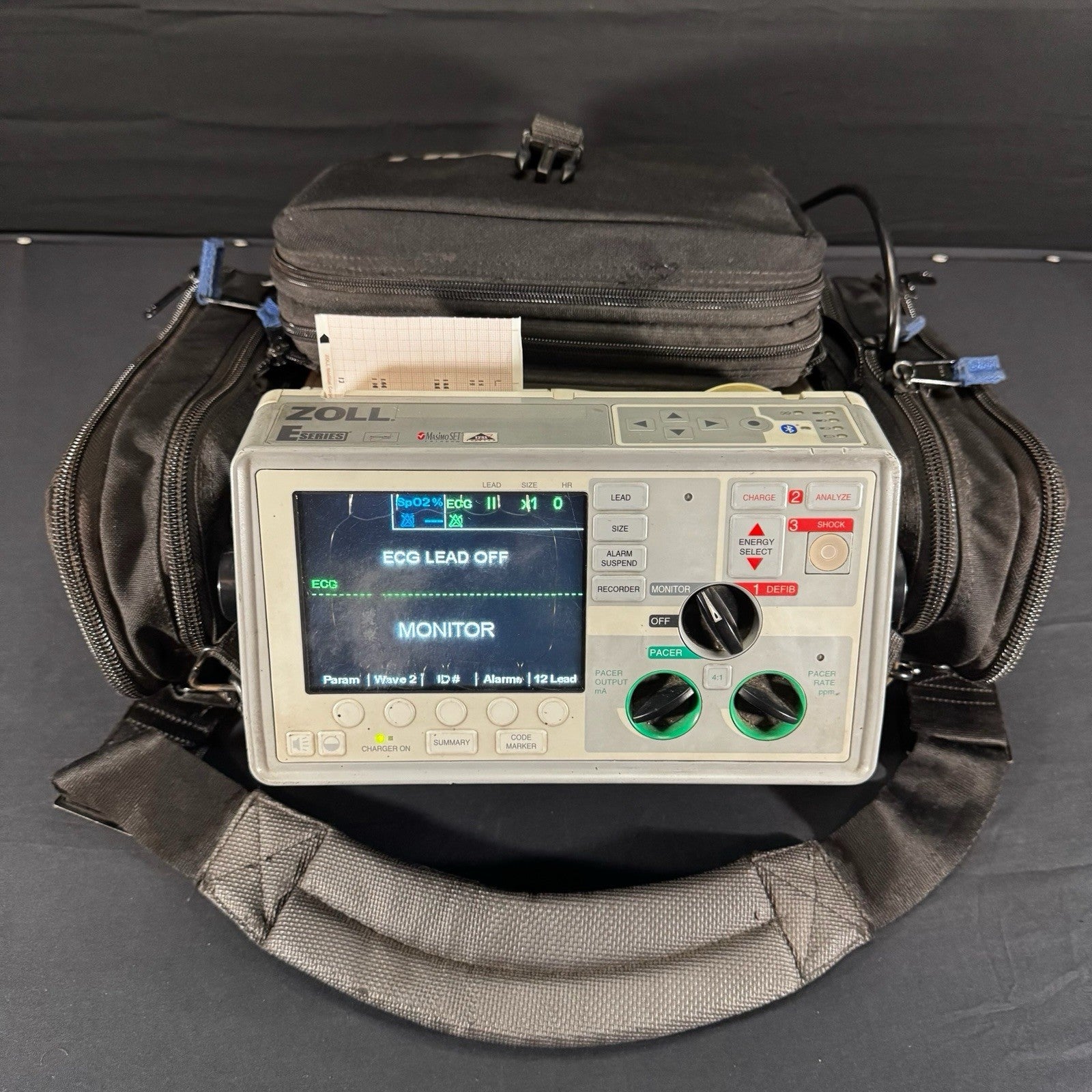

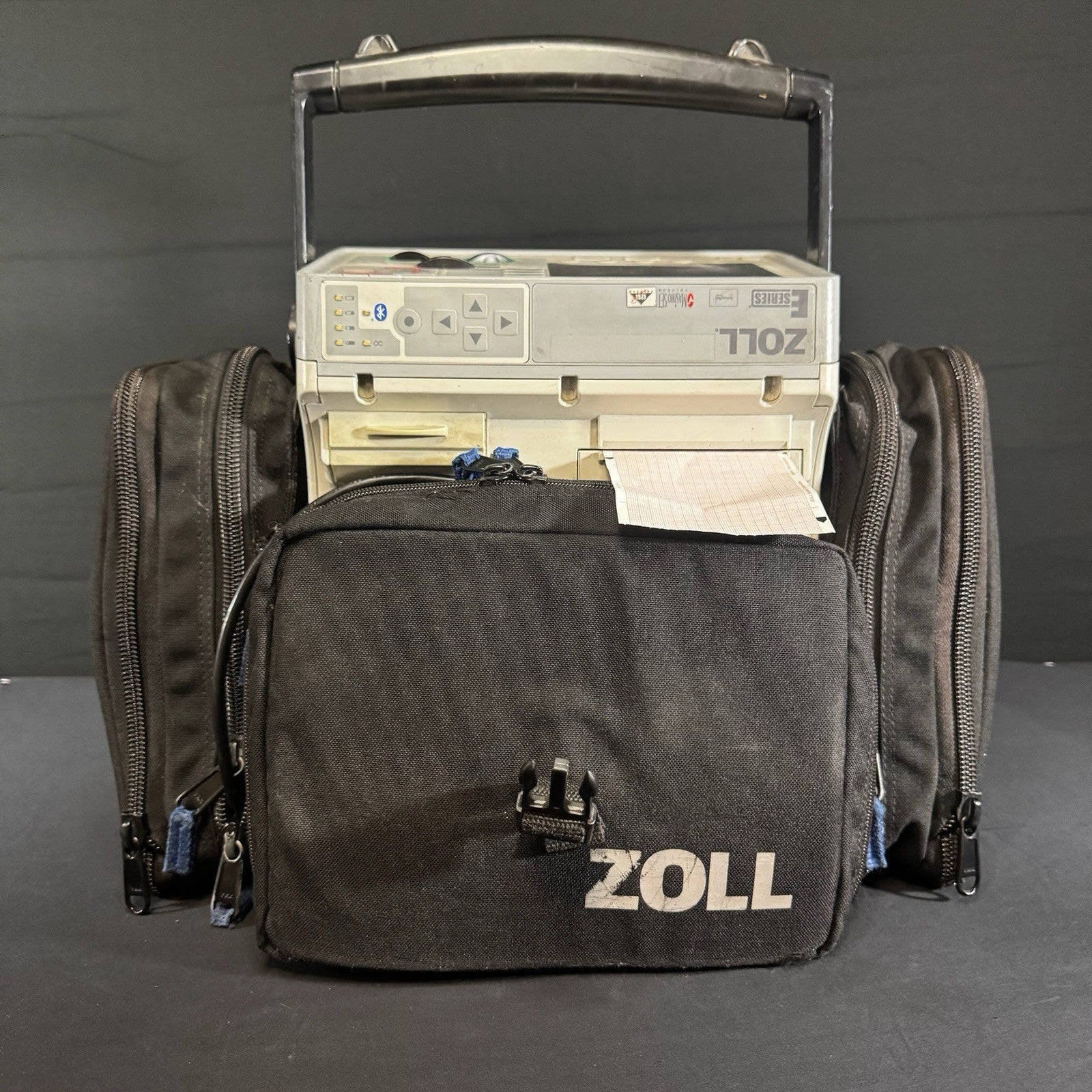

This Defibrillator turns on and cycles through the buttons as it should. It comes with two batteries, multiple types of defibrillator pads, heart monitor equipment, carry case, and everything pictured. If you have any questions, please ask.

The ZOLL E-Series Defibrillator Monitor is designed for the rigors of an EMS environment. This defibrillator monitor has an easy to read Tri-Mode Display, Pacer mode, and Defib mode and makes documentation easy when it’s combined with data transfer options that take the paper away. Chest compression rates and depth is measured in real time and both visual and optional audible feedback are provided. ECG signal processing extracts CPR artifacts from the ECG so you can see organized rhythms without interrupting compressions.

ZOLL E-Series Defibrillator Monitor Features:

EasyRead Tri-Mode Display for maximum readability, whether in pitch dark or direct sunlight.

Unique GPS clock provides complete time accuracy every time the defibrillator is used.

Rapid Cable Deployment System helps manage your wires and eliminates the “spaghetti”.

Protocol Assist Code Markers for rapid event documentation.

Battery flexibility with low-cost sealed lead acid or rechargeable lithium ion means more choices to meet your needs.

One-piece or two-piece pad. Have it your way.

The E Series easily share electrodes, batteries, and data, providing system-wide compatibility.

Virtually indestructible – resistant to dust and high-pressure, direct water spray (IP55 rating).

High-resolution LCD display and monitoring compatibility with ECG electrodes.

Three models: semi-automatic, semi-automatic with manual override, and fully manual.

Data storage through USB memory technology Unrivaled battery compatibility – from disposable to rechargeable.

Rugged design, advanced capabilities – ZOLL E-Series Defibrillator Monitor was designed specifically for the rigors of your EMS environment. Documentation is made easy when combined with data transfer options that take the “paper” away.

Real CPR Help – Chest compression rate and depth is measured in real-time, and both visual and optional audible feedback are provided. All CPR data can be recorded and reviewed using RescueNet Code

Review software.

See-thru CPR – ECG signal processing extracts CPR artifact from the ECG so you can see organized rhythms without interrupting compressions.

ZOLL E-Series Defibrillator Monitor Specifications:

Dimensions: 13″ W x 10 1/2″ D x 5 3/4″ H

Net Weight: 13.2 lbs

Gross Weight: 15 lbs

Screen Type: High-resolution LCD

Screen Size: 5.63 inches

Sweep Speed: 25 mm/sec

Viewing Time: 4 seconds

Channels: 2

Messages

Heart Rate

Lead / Pads

Alarm On/Off

SpO2, EtCO2, AED Functions and Prompts

Defibrillator Test Function

Error Corrections and Faults

Code Markers

Alarm Selection and Limits

Delivered Energy

ECG Monitoring

The Zoll E-Series Defibrillator Monitors with a patient connection of 3, 5, or 12 lead ECG cable, paddles or MFE pads, selectable from the front panel switch. This defibrillator is fully protected with a special circuit that prevents distortions of ECG by pacer pulse. It also offers a heart rate alarm to indicate tachycardia or bradycardia.

Display:

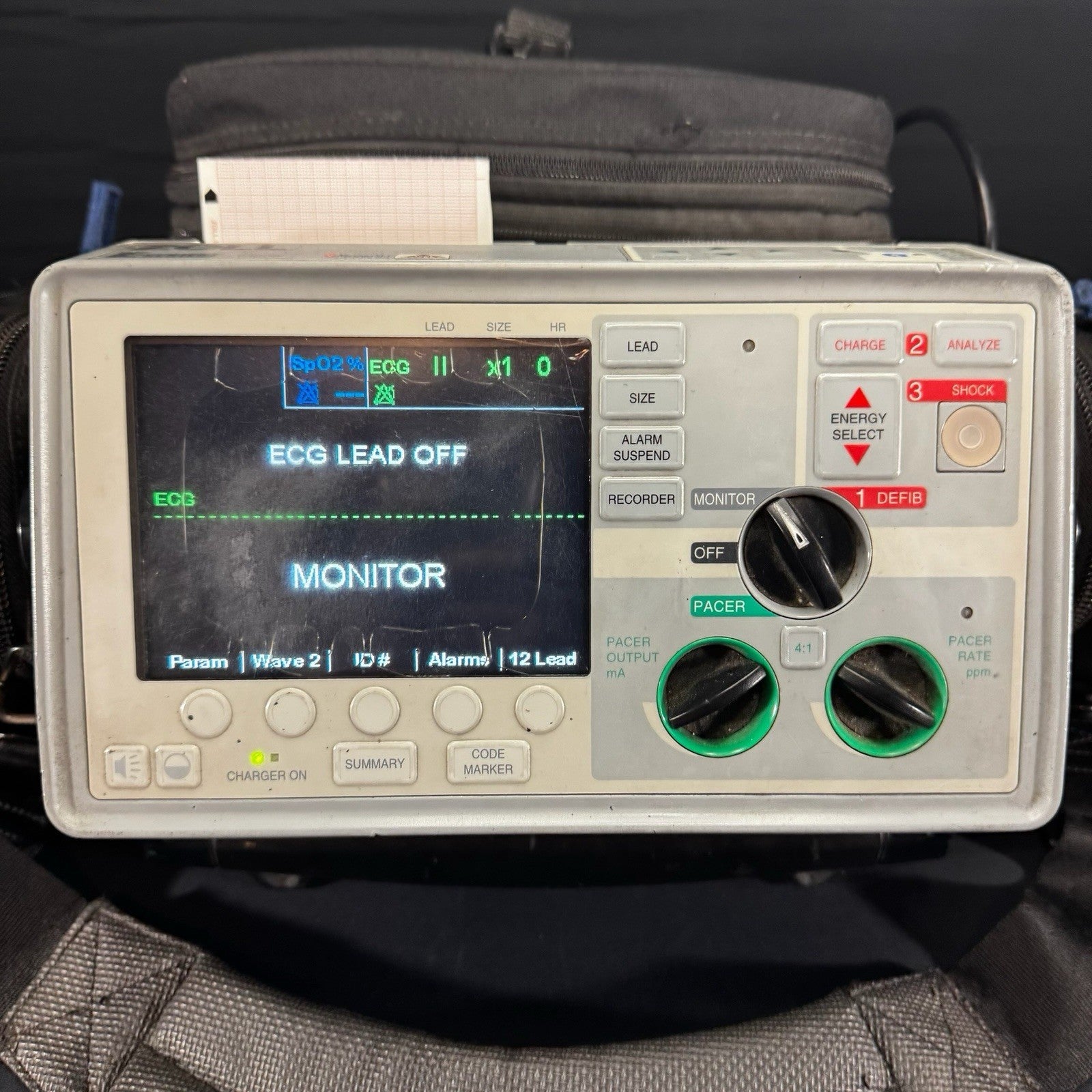

This Defibrillator has a high-resolution color liquid display with a nice 5.63-inch screen size, a sweep speed of 25mm/sec and a viewing time of 4 seconds, displaying 2 channels.

Defibrillator:

ZOLL Rectilinear Biphasic is what is used to form the waveform on the E Series Defibrillator with a 6 second charge time when fully charged. There are energy displays that indicate both selected and delivered energy. The multifunction electrode pads are included. Built-in Defibrillator tester provides verification of the defibrillator charging and discharging without removing paddles from storage.

Communication:

The defibrillator has an RS232 port for data transfer cable to PC, integrated Bluetooth which sends 12 lead and vital signs from the E Series to Fax or Email via Bluetooth enable PDA phone or laptop running ZOLL Data Relay. Also, includes a fax modem card for transmission to group 3 class fax machines. And a Bluetooth pod option for sending 12-lead ECG via Bluetooth enabled cell phone to Fax or GE MUSE system.
